Effects of Sugar Osmosis on Quality and Microstructure of Vacuum Freeze‑dried Pear Slices

doi:10.15933/j.cnki.1004-3268.2026.04.017

Abstract

Abstract: To explore the microscopic mechanism of different small‑molecule sugars in texture formation and their effects on the quality of vacuum‑freeze‑dried pear slices，pear slices were pretreated with glucose，fructose，and sucrose as penetrants，and then the samples were prepared by vacuum freeze‑drying.The physicochemical properties，texture characteristics，microstructure and cell wall chemical constitution of pear slices were systematically analyzed by conventional physical and chemical detection combined with Fourier transform infrared spectroscopy and X‑ray diffraction，with blank group as control（CK）.The results showed that compared with the CK group，small molecule sugar treatments significantly increased the brightness index of the samples，with the largest increase observed in the sucrose group（11.30%）.The total sugar content of the samples increased obviously，and the total sugar content significantly increased by 133.50% after glucose treatment. The total phenol content and total antioxidant capacity significantly decreased by 68.77%—70.35% and 51.12%—51.40%，respectively.Compared with the CK group，sugar osmotic treatment significantly increased the glass transition temperature of the samples，with an increase of 60.05% in the sucrose group.The moisture absorption rate obviously decreased，and the moisture absorption rate of the sucrose group decreased most significantly，with a decrease of 26. 22%. After sugar osmosis，the structure of the samples was more compact，the pore wall was thickened，and the hardness was significantly improved.Sucrose treatment also improved the uniformity of the pore structure，increasing the brittleness of the samples by 70.32%.The results of Fourier transform infrared spectroscopy showed that the hydrophilic groups of small molecular sugars could form hydrogen bonds with the components containing O-H in the cell wall of pear slices.The results of X‑ray diffraction showed that the sugar molecules did not change the original crystal form of the samples，but combined with the amorphous polysaccharide of the cell wall through hydrogen bond competition to form a more stable system.In conclusion，different small‑molecule sugars exhibit different effects on the physicochemical properties of freeze‑dried pear slices.Sucrose can effectively improve the commercial quality of vacuum freeze‑dried pear slices，especially in terms of texture characteristics.

Key words: Pear slices, Vacuum freeze?drying, Sugar permeation, Quality, Textural property, Moisture absorption rate

摘要： 为探究不同小分子糖对真空冷冻干燥梨片质构形成的微观作用机制及品质影响，以葡萄糖、果糖、蔗糖作为渗透剂对梨片进行预处理，再经真空冷冻干燥制备样品；以空白组为对照（CK），采用常规理化检测结合傅里叶变换红外光谱、X射线衍射等方法，对梨片的理化性质、质构特性、微观结构及细胞壁化学结构进行系统分析。结果表明，与CK相比，小分子糖处理显著提高样品的明度指数，其中蔗糖组提升幅度最大（11.30%）；样品总糖含量明显升高，葡萄糖处理后总糖含量显著提高133.50%；而总酚含量与总抗氧化能力分别显著降低68.77%~70.35%和51.12%~51.40%。糖渗透处理后样品的玻璃化转变温度显著升高，其中蔗糖组升高幅度达60.05%；吸湿率明显降低，蔗糖组吸湿率下降最多，降幅为26.22%。糖渗透后产品组织结构更为紧实，孔壁增厚，硬度显著提高；蔗糖处理还改善了孔隙结构均匀性，使样品脆度提高70.32%。傅里叶变换红外光谱结果显示，小分子糖的亲水基团可与梨片细胞壁中含O-H的组分形成氢键；X射线衍射结果表明，糖分子未改变样品原有晶型，而是通过氢键竞争与细胞壁无定形多糖结合，形成了更稳定的体系。综上，不同小分子糖对冻干梨片物理化学性质影响不同，蔗糖可有效提高真空冷冻干燥梨片的商品品质，特别在质构特性方面。

关键词: 梨片, 真空冷冻干燥, 糖渗透, 品质, 质构特性, 吸湿率

CLC Number:

SONG Yang, ZHANG Kangzhuang, HU Dandan, LIU Zhenzhen, WANG Xiaoxuan, TANG Xuanming. Effects of Sugar Osmosis on Quality and Microstructure of Vacuum Freeze‑dried Pear Slices[J]. Journal of Henan Agricultural Sciences, 2026, 55(4): 172-180.

宋扬, 张康壮, 胡丹丹, 刘贞贞, 王晓漩, 唐选明. 糖渗透对真空冷冻干燥梨片品质及微观结构的影响[J]. 河南农业科学, 2026, 55(4): 172-180.

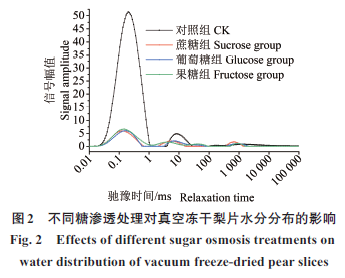

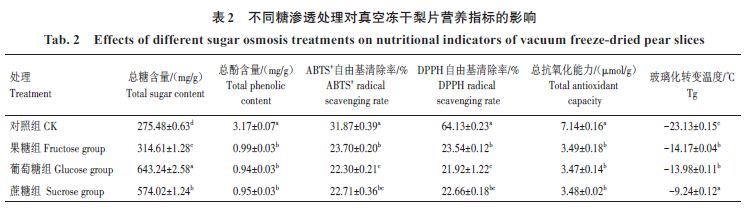

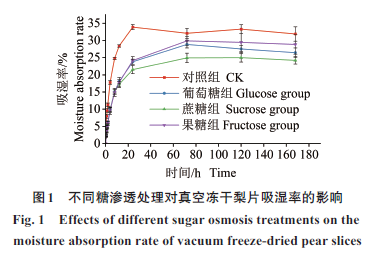

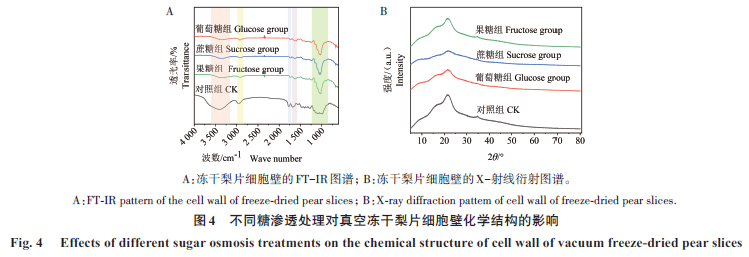

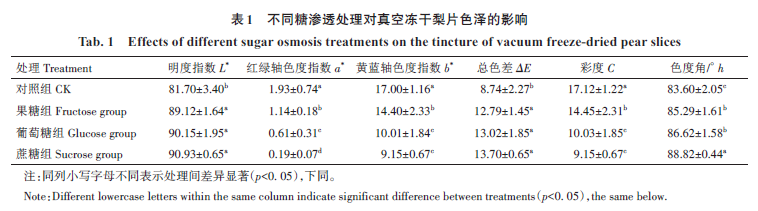

Figures/Tables 7

References

［1］张放. 全国：2021年我国四大主产水果产量再创新高［J］. 中国果业信息，2022，39（9）：59.
ZHANG F. Nationwide：In 2021，the output of the four major fruits in China reached a new high［J］. China Fruit News，2022，39（9）：59.

［2］张四普，崔巍，张柯，等. 11种不同品种梨膏的综合品质评价［J］. 河南农业科学，2025，54（12）：167‑180.

ZHANG S P，CUI W，ZHANG K，et al. Comprehensive quality evaluation of 11 different varieties of pear paste［J］. Journal of Henan Agricultural Sciences，2025，54 （12）：167‑180.

［3］王娅，曹雪慧，年蕊，等. 梨石细胞形成的控制因素及对果实质构影响研究进展［J］. 食品科学，2024，45（7）：340‑347.

WANG Y，CAO X H，NIAN R，et al. Research progress on factors controlling the formation of stone cells in pear fruits and their effects on fruit texture［J］. Food Science，2024，45（7）：340‑347.

［4］郭梓煜，胡佳琦，杨菲菲，等. 预冻及蔗糖浸渍方法对冻干苹果片品质的影响［J］. 食品与机械，2024，40（6）：185‑191.

GUO Z Y，HU J Q，YANG F F，et al. Effects of pre‑freezing and sucrose impregnation methods on the quality of freeze‑dried apple slices［J］. Food and Machinery，2024，40（6）：185‑191.

［5］WANG D Q，SU D B，WANG S，et al. Penetrating microwave vacuum drying：A superior alternative to traditional drying methods for enhancing sensory quality，biological activity and flavor of‘Akizuki’pear（Pyrus pyrifolia Nakai）［J］. Journal of Food Composition and Analysis，2025，142：107415.

［6］彭进明，梁贵强，肖宇燊，等. 超声辅助不同小分子糖渗透处理后真空冷冻干燥油柑的品质比较［J］. 现代食品科技，2024，40（4）：215‑224.

PENG J M，LIANG G Q，XIAO Y C，et al. Quality comparison of vacuum freeze‑dried Phyllanthus emblica after ultrasound‑assisted osmotic treatment with different small molecular sugars［J］. Modern Food Science and Technology，2024，40（4）：215‑224.

［7］ALLAHDAD Z，NASIRI M，VARIDI M，et al. Effect of sonication on osmotic dehydration and subsequent air‑drying of pomegranate arils［J］. Journal of Food Engineering，2019，244：202‑211.

［8］PROSAPIO V，NORTON I. Simultaneous application of ultrasounds and firming agents to improve the quality properties of osmotic + freeze‑dried foods［J］. LWT，2018，96：402‑410.

［9］李卓豪，毕金峰，易建勇，等. 真空冷冻干燥果胶-纤维素-小分子糖气凝胶质构研究［J］.核农学报，2022，36（9）：1805‑1814.

LI Z H，BI J F，YI J Y，et al. Study on texture properties of freeze‑dried pectin‑cellulose‑small molecule sugar aerogels［J］. Journal of Nuclear Agricultural Sciences，2022，36（9）：1805‑1814.

［10］李原，毕金峰，易建勇，等. 酸奶和乳清蛋白比例对冻干蓝莓酸奶品质影响研究［J］. 核农学报，2023，37（8）：1578‑1587.

LI Y，BI J F，YI J Y，et al. Effect of yogurt and whey protein ratio on the quality of freeze‑dried blueberry yogurt［J］. Journal of Nuclear Agricultural Sciences，2023，37（8）：1578‑1587.

［11］骆勇，陈紫麟，郭天敏，等. 比较不同干燥工艺参数对大球盖菇和秀珍菇品质引起的变化［J］. 现代食品科技，2025，41（4）：248‑256.

LUO Y，CHEN Z L，GUO T M，et al. Comparison on the changes caused by different drying process parameters on the quality of Stropharia rugosoannulata and Pleurotus geesteranus［J］. Modern Food Science & Technology，2025，41（4）：248‑256.

［12］于蕊，杨慧珍，李大婧，等. 真空冷冻干燥不同升温程序对蓝莓干燥特性及品质影响［J］. 核农学报，2024，38（1）：84‑92.

YU R，YANG H Z，LI D J，et al. Effects of different heating procedures on the drying characteristics and quality of blueberry during vacuum freeze drying［J］.Journal of Nuclear Agricultural Sciences，2024，38（1）：84‑92.

［13］ZIELINSKA M，SADOWSKI P，BŁASZCZAK W.Freezing/thawing and microwave‑assisted drying of blueberries（Vaccinium corymbosum L.）［J］. LWT，2015，62（1）：555‑563.

［14］刘春菊，王海鸥，牛丽影，等. 蔗糖调控对气流膨化黄桃片微观结构及品质的影响［J］. 食品科学，2020，41（11）：113‑120.

LIU C J，WANG H O，NIU L Y，et al. Effect of sucrose control on microstructure and quality of explosion‑puffed yellow peach chips［J］. Food Science，2020，41（11）：113‑120.

［15］冯舒涵. 真空冷冻干燥重组果蔬块的质构形成机理与调控技术研究［D］. 北京：中国农业科学院，2023：59.

FENG S H.Textural formation mechanism and control technology of freeze‑dried restructured fruit and vegetable cubes［D］.Beijing：Chinese Academy of Agricultural Sciences，2023：59.

［16］CHEN H H，ZHAO C M，LI J，et al. Effects of extrusion on structural and physicochemical properties of soluble dietary fiber from nodes of Lotus roo［t J］. LWT，2018，93：204‑211.

［17］马有川，毕金峰，易建勇，等. 预冻对苹果片真空冷冻干燥特性及品质的影响［J］. 农业工程学报，2020，36（18）：241‑250.

MA Y C，BI J F，YI J Y，et al. Effects of pre‑freezing on the drying characteristics and quality parameters of freeze drying apple slices［J］.Transactions of the Chinese Society of Agricultural Engineering，2020，36 （18）：241‑250.

［18］SILVA‑ESPINOZA M A，DEL MAR CAMACHO VIDAL M， MARTÍNEZ‑NAVARRETE N. Use of different biopolymers as carriers for purposes of obtaining a freeze‑dried orange snack［J］. LWT，2020，127：109415.

［19］赵迎丽，张微，杨志国，等. 冰温贮藏对玉露香梨果实质构特性及色泽的影响［J］. 山西农业科学，2024，52（6）：128‑135.

ZHAO Y L，ZHANG W，YANG Z G，et al. Effect of ice temperature storage on texture characteristics and color of Yuluxiang pear［J］. Journal of Shanxi Agricultural Sciences，2024，52（6）：128‑135.

［20］FENG Y B，YU X J，YAGOUB A E G A，et al.Vacuum pretreatment coupled to ultrasound assisted osmotic dehydration as a novel method for garlic slices dehydration［J］. Ultrasonics Sonochemistry，2019，50：363‑372.

［21］SAQIB A A N，WHITNEY P J. Differential behaviour of the dinitrosalicylic acid（DNS）reagent towards mono‑ and di‑saccharide sugars［J］. Biomass and Bioenergy，2011，35（11）：4748‑4750.

［22］李卓豪，毕金峰，易建勇，等. 不同小分子糖渗透草莓的传质动力学及对真空冷冻干燥草莓品质的影响［J］. 食品科学，2022，43（17）：95‑104.
LI Z H，BI J F，YI J Y，et al. Mass transfer kinetics of osmotic dehydration of strawberries with various small‑molecule sugars and their effect on the quality of freeze‑dried strawberries［J］. Food Science，2022，43（17）：95‑104.

［23］LILIANA S C，DIANA V M，ALFREDO A A A.Structural， physical， functional and nutraceutical changes of freeze‑dried fruit［J］. African Journal of Biotechnology，2015，14（6）：442‑450.

［24］WANG D D，MARTYNENKO A. Estimation of total，open‑，and closed‑pore porosity of apple slices during drying［J］. Drying Technology，2016，34（8）：892‑899.

［25］LEWICKI P P. Effect of pre‑drying treatment，drying and rehydration on plant tissue properties：A review［J］.International Journal of Food Properties，1998，1（1）：1‑22.

［26］陈腊梅，金鑫，毕金峰，等. 超声辅助糖液渗透处理对真空冷冻干燥桃脆片干制品品质及吸湿性的影响［J］. 食品科学，2022，43（17）：117‑123.
CHEN L M，JIN X，BI J F，et al. Effect of ultrasonic‑assisted sugar osmotic pretreatment on quality and hygroscopicity of vacuum freeze‑dried peach chips［J］. Food Science，2022，43（17）：117‑123.

［27］张鹏飞，吕健，毕金峰，等. 渗透脱水对变温压差膨化干燥桃片品质的影响［J］. 中国食品学报，2017，17（1）：69‑76.

ZHANG P F，LÜ J，BI J F，et al. Effect of osmotic dehydration on quality of peach chips prepared by explosion puffing drying［J］. Journal of Chinese Institute of Food Science and Technology，2017，17 （1）：69‑76.

［28］ZHAN T J，XU Y，WANG D，et al. Interaction of solute and water molecules in cryoprotectant mixture during vitrification and crystallization［J］.Journal of Molecular Liquids，2021，325：114658.
