Preparation of Tobacco Essential Oil Microcapsule and Its Application in Cigarette Paper

doi:10.15933/j.cnki.1004-3268.2025.02.018

Abstract

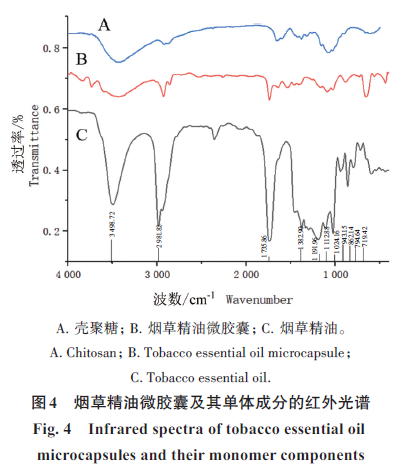

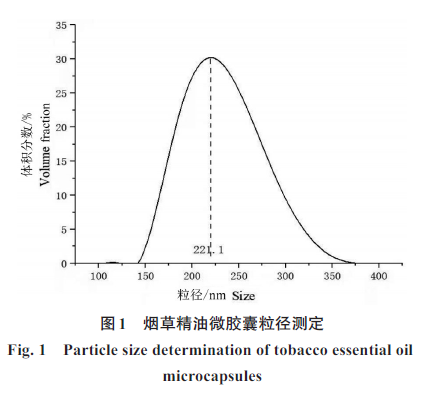

Abstract: In order to explore the effect of tobacco essential oil microcapsules on cigarette paper flavoring，firstly，tobacco essential oil was prepared by water distillation. Then complex coacervation method was employed to prepare tobacco essential oil microcapsules with tobacco essential oil as the core material，chitosan as the wall material，and span⁃80 as the emulsifier，and the embedding yield was determined.Subsequently，scanning electron microscopy，laser particle size analyzer and infrared spectrum analyzer were used to characterize the physical and chemical properties of microcapsules.Finally，the microcapsules were used to flavor cigarette paper，and the sensory evaluation and smoke composition analysis of the flavored cigarettes were carried out.The results showed that the average particle size of tobacco essential oil microcapsules prepared with chitosan as the wall material and tobacco essential oil as the core material was 221. 1 nm，and the embedding yield was 75.3%.The prepared tobacco essential oil microcapsules showed smooth and plump spherical surface through scanning electron microscope.The infrared spectrum analysis of tobacco essential oil，chitosan and tobacco essential oil microcapsules showed that tobacco essential oil was embedded in chitosan by comparing their characteristic absorption peaks.The results of sensory evaluation showed that the flavored cigarettes were significantly improved.When the tobacco essential oil microcapsules and tobacco essential oil were compounded at a volume ratio of 1∶2，the aroma effect was more significant，and the sensory evaluation score could reach 86.6.Compared with the control（ie.cigarettes without flavoring），the contents of nicotine，alcohols，aldehydes，acids，esters and ketones in the smoke components of the cigarettes with compound flavors were increased，and the aroma，taste and strength of cigarettes were improved.

Key words: Tobacco essential oil, Microcapsule, Cigarette paper flavoring, Sensory evaluation, Smoke

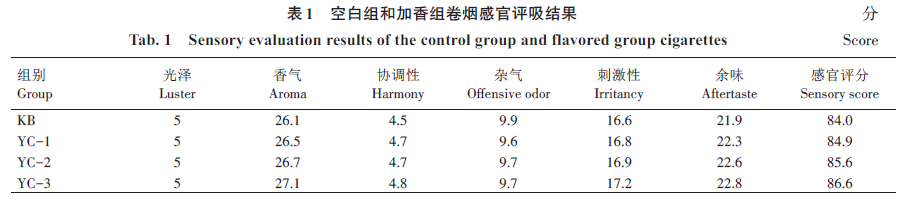

摘要： 为探究烟草精油微胶囊在卷烟纸加香的效果，首先通过水中蒸馏法制备烟草精油，采用复凝聚法，以烟草精油为芯材、壳聚糖为壁材、司班-80为乳化剂，制备烟草精油微胶囊并测定包埋产率，然后采用扫描电子显微镜、激光粒度仪和红外光谱分析仪等对微胶囊的物理化学性质进行表征，最后将微胶囊进行卷烟纸加香并对加香后的卷烟进行感官评价和烟气成分分析。结果表明，以壳聚糖为壁材、烟草精油为芯材制备烟草精油微胶囊的平均粒径为221.1 nm，包埋产率为75.3%。通过扫描电子显微镜对制备的烟草精油微胶囊观察发现，其呈现表面光滑饱满的球状。对烟草精油、壳聚糖和烟草精油微胶囊进行红外光谱分析，通过对比三者的特征吸收峰可以证明烟草精油被包埋在壳聚糖中。感官评吸结果表明，加香后的卷烟感官质量均有明显改善。烟草精油微胶囊与烟草精油按体积比1∶2复配后加香效果更为显著，感官评吸得分可达86.6。与未加香空白组卷烟相比，添加复配溶液的卷烟烟气成分中烟碱、醇类、醛类、酸类、酯类、酮类成分的含量均有提高，卷烟香味、吃味和劲头均得到改善。

关键词: 烟草精油, 微胶囊, 卷烟纸加香, 感官评价, 烟气

CLC Number:

S572
TS452

XUE Yun, WU Yihong, LIU Yuanshang, HUANG Jiale, ZHOU Pengfei, BAI Jiafeng, JIA Xuewei, DAI Yuxiang, XU Chunping. Preparation of Tobacco Essential Oil Microcapsule and Its Application in Cigarette Paper[J]. Journal of Henan Agricultural Sciences, 2025, 54(2): 154-162.

薛云, 吴艺虹, 刘远上, 黄家乐, 周鹏飞, 白家峰, 贾学伟, 代玉祥, 许春平. 烟草精油微胶囊的制备及其在卷烟纸中的应用[J]. 河南农业科学, 2025, 54(2): 154-162.

Figures/Tables 7

References

［1］张翼鹏，张健，曾熠程，等. 津巴布韦烟草提取物制备工艺优化及化学成分研究［J］.云南农业大学学报（自然科学），2019，34（1）：63⁃69.
ZHANG Y P，ZHANG J，ZENG Y C，et al.Study on the preparation process optimization and chemical composition analysis of the Zimbabwe tobacco extract［J］.Journal of Yunnan Agricultural University（Natural Science），2019，34（1）：63⁃69.
［2］许克静，蔡莉莉，席高磊，等.云烟净油的制备及主要成分［J］.烟草科技，2022，55（8）：57⁃64.
XU K J，CAI L L，XI G L，et al.Absolute oil of Yunyan tobacco：Preparation and major components［J］.Tobacco Science & Technology，2022，55（8）：57⁃64.
［3］MATSUKURA M，TAKAHASHI K，KAWAMOTO M，et al.Comparison of roasted tobacco volatiles with tobacco essential oil and cigarette smoke condensate［J］.Agricultural and Biological Chemistry，1985，49（3）：711⁃718.
［4］杨菁，沈晓洁，张怡春，等.烟梗的超临界CO2流体萃取工艺及萃取物在电子烟中的应用［J］.烟草科技，2016，49（7）：51⁃59.
YANG J，SHEN X J，ZHANG Y C，et al.Supercritical CO₂ extraction on tobacco stem and application of stem extract in e⁃cigarette liquids［J］.Tobacco Science & Technology，2016，49（7）：51⁃59.

［5］张献忠，杨君，尹洁，等.烟草精油研究及应用进展［J］.食品工业科技，2012，33（17）：395⁃397.

ZHANG X Z，YANG J，YIN J，et al.Recent progress in research and application of tobacco essential oil［J］.Science and Technology of Food Industry，2012，33（17）：395⁃397.

［6］ZHANG X Z，GAO H J，ZHANG L F，et al.Extraction of essential oil from discarded tobacco leaves by solvent extraction and steam distillation，and identification of its chemical composition［J］.Industrial Crops and Products，

2012，39：162⁃169.

［7］杜毅，陈洪，马清仪. 超临界CO2萃取在烟草工业上的应用综述［J］.烟草科技，2006，39（4）：43⁃44.

DU Y，CHEN H，MA Q Y.Application of supercritical carbon dioxide extraction in tobacco industry：A review［J］.Tobacco Science & Technology，2006，39（4）：43⁃44.

［8］STOJANOVIC G，PALIC R，ALAGIC S，et al.Chemical composition and antimicrobial activity of the essential oil and CO₂ extracts of semi⁃oriental tobacco，Otlja［J］.Flavour and Fragrance Journal，2000，15（5）：335⁃338.

［9］马胜涛. 分子蒸馏技术分离提纯烟草浸膏的研究［D］. 上海：上海应用技术学院，2015.

MA S T. Studies on purification of tobacco extract by molecular distillation［D］.Shanghai：Shanghai Institute of Technology，2015.

［10］张献忠.废次烟末中烟草香味物质提取、应用及生物活性［D］.杭州：浙江大学，2013.

ZHANG X Z. Extraction of tobacco flavor compounds from discarded tobacco leaves and their application in cigarettes and in vitro bioactivities［D］. Hangzhou：Zhejiang University，2013.

［11］沈妍，徐兰兰，尧珍玉，等. 微胶囊在卷烟用纸上的应用评价［J］. 中国造纸，2017，36（7）：36⁃43.

SHEN Y，XU L L，YAO Z Y，et al. Application of complex coacervation microcapsules in cigarette paper［J］.China Pulp & Paper，2017，36（7）：36⁃43.

［12］程世鸿，邵璐. 卷烟调香技术研究进展［J］. 广东化工，2024，51（18）：107⁃109.

CHENG S H，SHAO L. Review of cigarette flavoring technology［J］.Guangdong Chemical Industry，2024，51（18）：107⁃109.

［13］秦艳，康林芝，云帆，等.沉香精油微胶囊的制备及其在卷烟纸中的应用研究［J］.农产品加工，2016（14）：9⁃13，16.

QIN Y，KANG L Z，YUN F，et al.Manufacturing microcapsules of eaglewood oil and application in cigarette paper［J］.Farm Products Processing，2016 （14）：9⁃13，16.

［14］卓浩廉，罗福明，伍锦鸣，等. 红枣香精微胶囊的制备及其在卷烟纸中的应用研究［J］.农产品加工，2015（13）：17⁃18.

ZHUO H L，LUO F M，WU J M，et al.Manufacturing microcapsules of Zizyphus jujuba oil and application in

cigarette paper［J］.Farm Products Processing，2015 （13）：17⁃18.

［15］何红梅，杨静，张文灿，等. 一种薄荷味卷烟纸增香用微胶囊的制备及应用［J］.中华纸业，2023，44（10）：35⁃38.

HE H M，YANG J，ZHANG W C，et al. Preparation of microcapsules for flavoring peppermint cigarette paper ［J］.China Pulp & Paper Industry，2023，44（10）：35⁃38.

［16］段昊沅，朱凯，杨菁，等. 不同产地烟草精油的提取及化学组成分析［J］.生物质化学工程，2022，56（3）：35⁃38.

DUAN H Y，ZHU K，YANG J，et al.Extraction and chemical composition analysis of tobacco essential oil from different places ［J］. Biomass Chemical Engineering，2022，56（3）：35⁃38.

［17］孙强，李立鹏，蔡继宝，等. 薄荷味纳米微胶囊的制备及其在加热卷烟中的应用［J］.香料香精化妆品，2025（1）：126⁃133.

SUN Q，LI L P，CAI J B，et al. Preparation of peppermint flavored nanocapsules and their application in HBN cigarette［J］.Flavour Fragrance Cosmetics，2025（1）：126⁃133.

［18］蒋天艳，刘婉嫕，王聪，等. 壳聚糖/明胶/纤维素纳米晶体复合壁材制备香精微胶囊［J］.中国造纸，2021，40（6）：34⁃39.

JIANG T Y，LIU W Y，WANG C，et al.Preparation of fragrance microcapsule with chitosan/gelatin/cellulose nanocrystalline composite wall material［J］.China Pulp & Paper，2021，40（6）：34⁃39.

［19］常馨月，陈程莉，董全. 奇亚籽油微胶囊的制备及表征［J］.食品与发酵工业，2020，46（5）：200⁃207.

CHANG X Y，CHEN C L，DONG Q. Preparation and characterization of Chia seed oil microcapsules［J］.Food and Fermentation Industries，2020，46（5）：200⁃207.

［20］杨虹，苏国岁. 烟用香精的GC-MS指纹图谱［J］.分析测试学报，2004，23（S1）：278⁃279.

YANG H，SU G S. Chromatographic fingerprint of tobacco flavor by GC⁃MS［J］.Journal of Instrumental Analysis，2004，23（S1）：278⁃279.

［21］胡志忠，姜宇，龙章德，等.利用产香酵母发酵技术改善烟叶品质［J］.食品与机械，2018，34（11）：200⁃204.

HU Z Z，JIANG Y，LONG Z D，et al. Study on improvement of tobacco quality by fermentation technology with aroma producing yeast［J］.Food & Machinery，2018，34（11）：200⁃204.

［22］肖卫强，李淑萍，李海锋，等.卷烟纸及其七种原料和助剂裂解产物对比分析［J］.中国造纸，2017，36（2）：23⁃27.

XIAO W Q，LI S P，LI H F，et al. Comparative analysis of pyrolysates of cigarette paper and its seven raw materials［J］.China Pulp & Paper，2017，36（2）：23⁃27.
［23］胡军，余邦林，姬凌波，等.基于SHS-GC-MS和GCIMS的对两种雪茄烟挥发性香味成分的分析与研究［J］.中国烟草学报，2023，29（2）：111⁃121.
HU J，YU B L，JI L B，et al. Analysis and study on volatile aroma components of two types of cigars based on SHS⁃GC⁃MS and GC⁃IMS［J］.Acta Tabacaria Sinica，2023，29（2）：111⁃121.
［24］NAIR I M，KOCHUPURACKAL J. Squalene hopene cyclases and oxido squalene cyclases：Potential targets for regulating cyclisation reactions［J］.Biotechnology Letters，2023，45（5/6）：573⁃588.
［25］朱显灵，潘文杰，陈懿，等.不同品种烤烟鲜叶表面提取物的主要成分分析［J］.中国烟草科学，2011，32（3）：51⁃56.
ZHU X L，PAN W J，CHEN Y，et al.Analysis of major cuticular components from green leaf of different flue⁃cured tobacco varieties［J］.Chinese Tobacco Science，2011，32（3）：51⁃56.
［26］徐世涛，张虹娟，魏杰，等.微胶囊玫瑰精油的制备及其卷烟加香评价［J］.云南大学学报（自然科学版），2013，35（S1）：293⁃295.
XU S T，ZHANG H J，WEI J，et al. Preparation for microcapsule rose essential oil and its evaluation for cigarette flavoring［J］.Journal of Yunnan University（Natural Sciences Edition），2013，35（S1）：293⁃295.

［27］白晓莉，龚荣岗，董伟，等.树花精油微胶囊的制备工艺及其在卷烟中的应用研究［J］.食品工业，2013，34（7）：28⁃31.

BAI X L，GONG R G，DONG W，et al. Preparation and optimization on the controlled⁃release of gelatinsodium alginate compound based on essential oils from tea flower by subcritical water［J］.The Food Industry，2013，34（7）：28⁃31.
